TK MANUAL CRIMPER BEADER W/PEDESTAL 24 GA CAPACITY

$1,171.55
Unit price per

Shipping calculated at checkout.

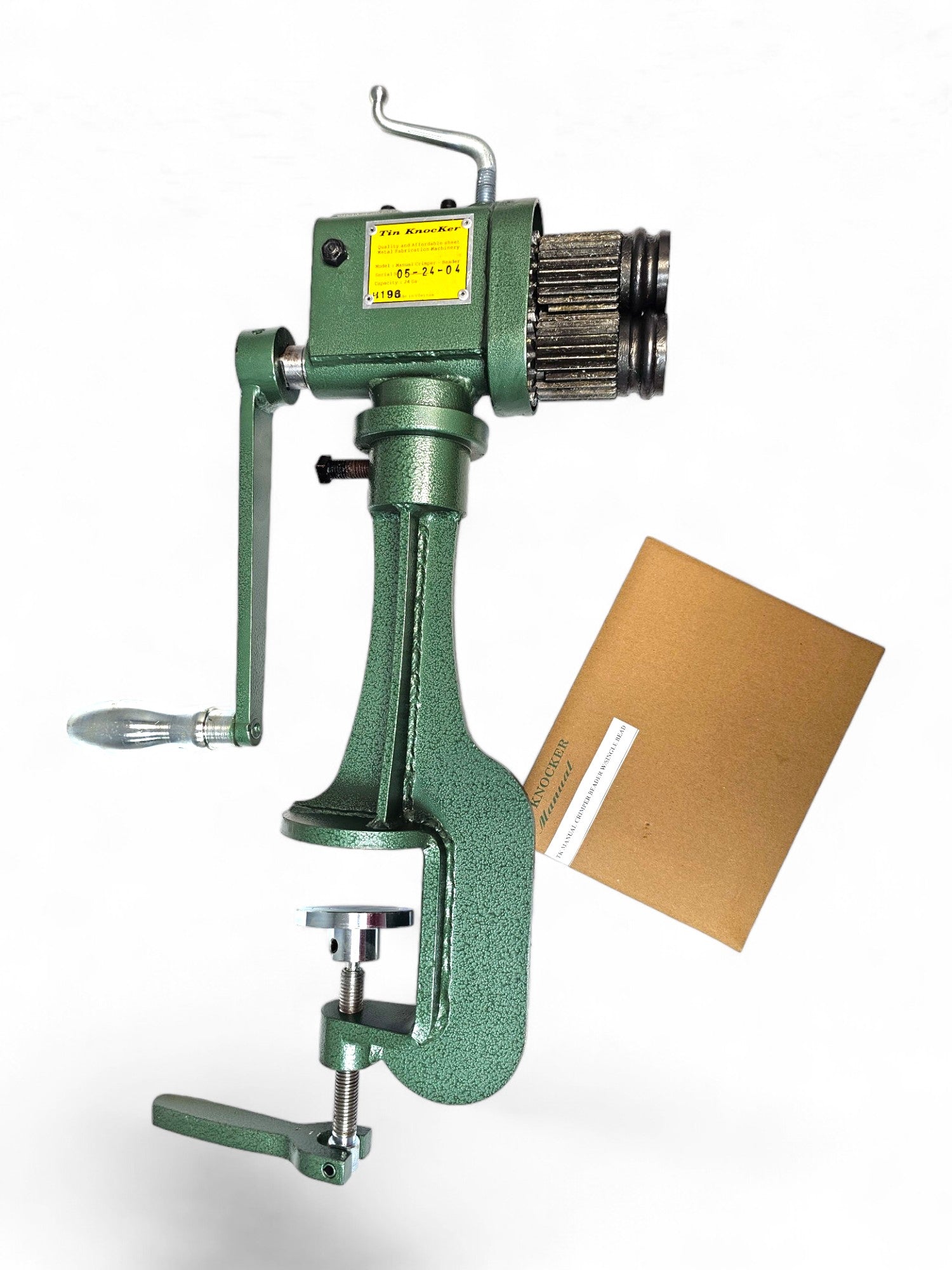

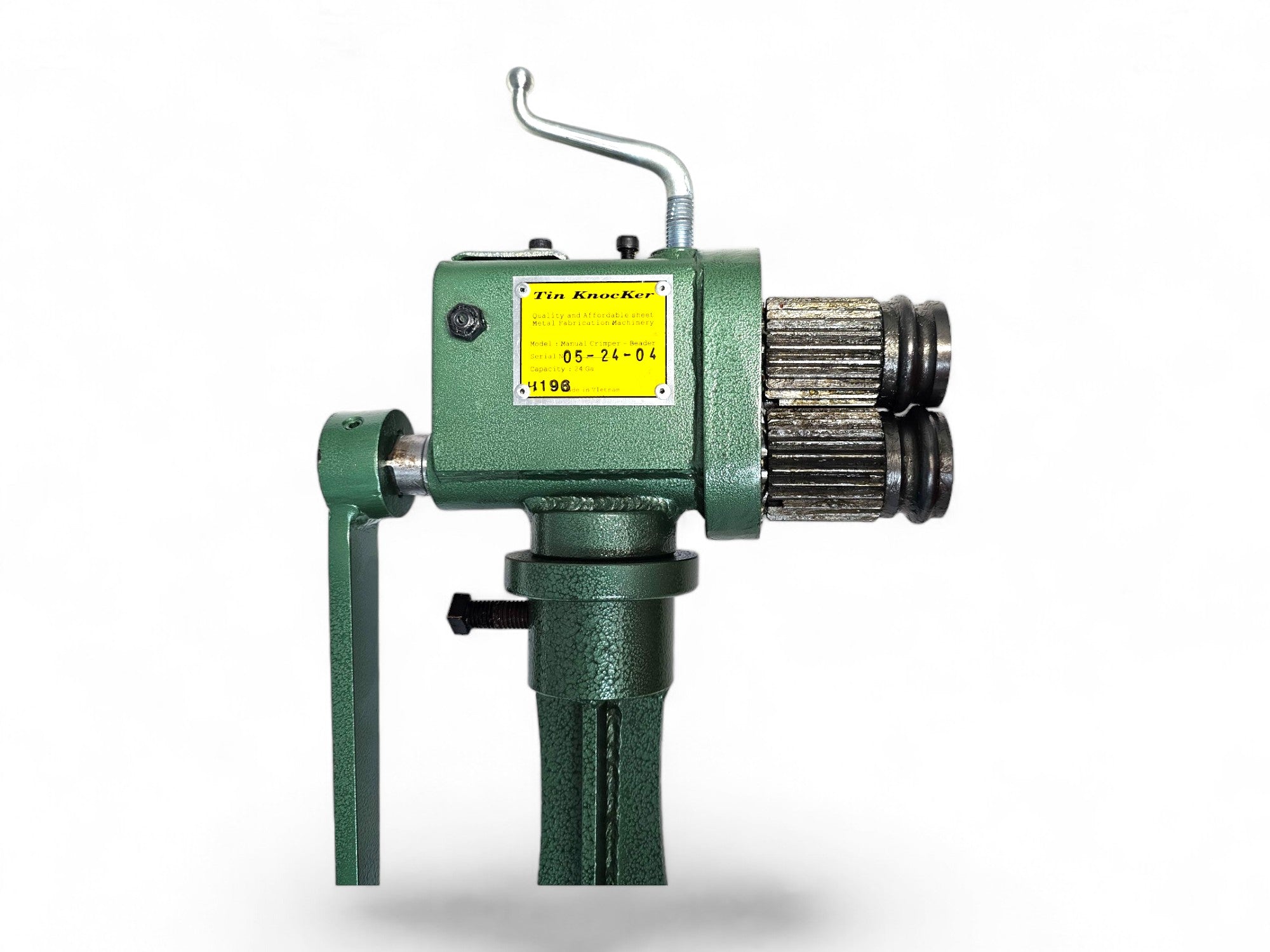

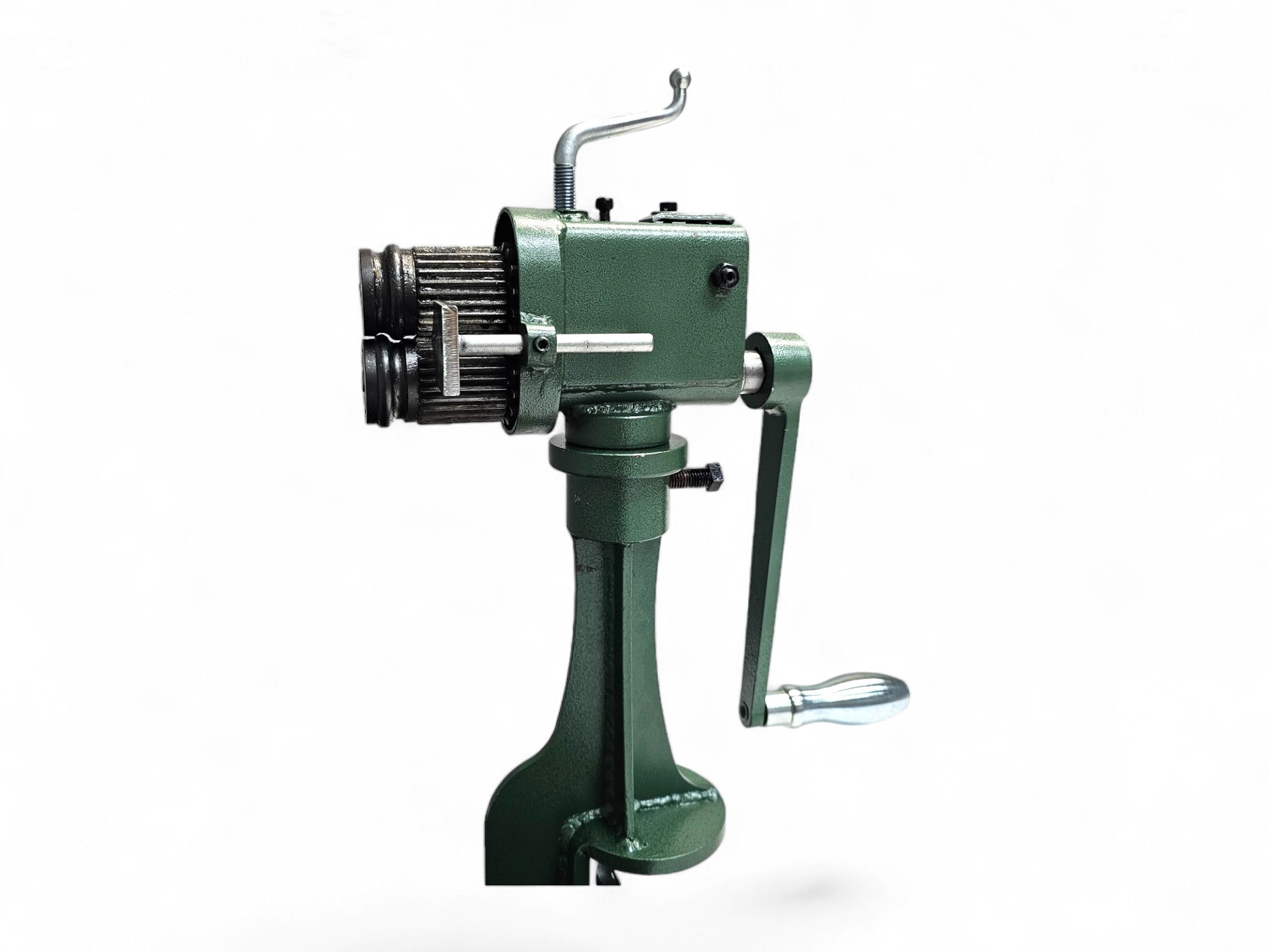

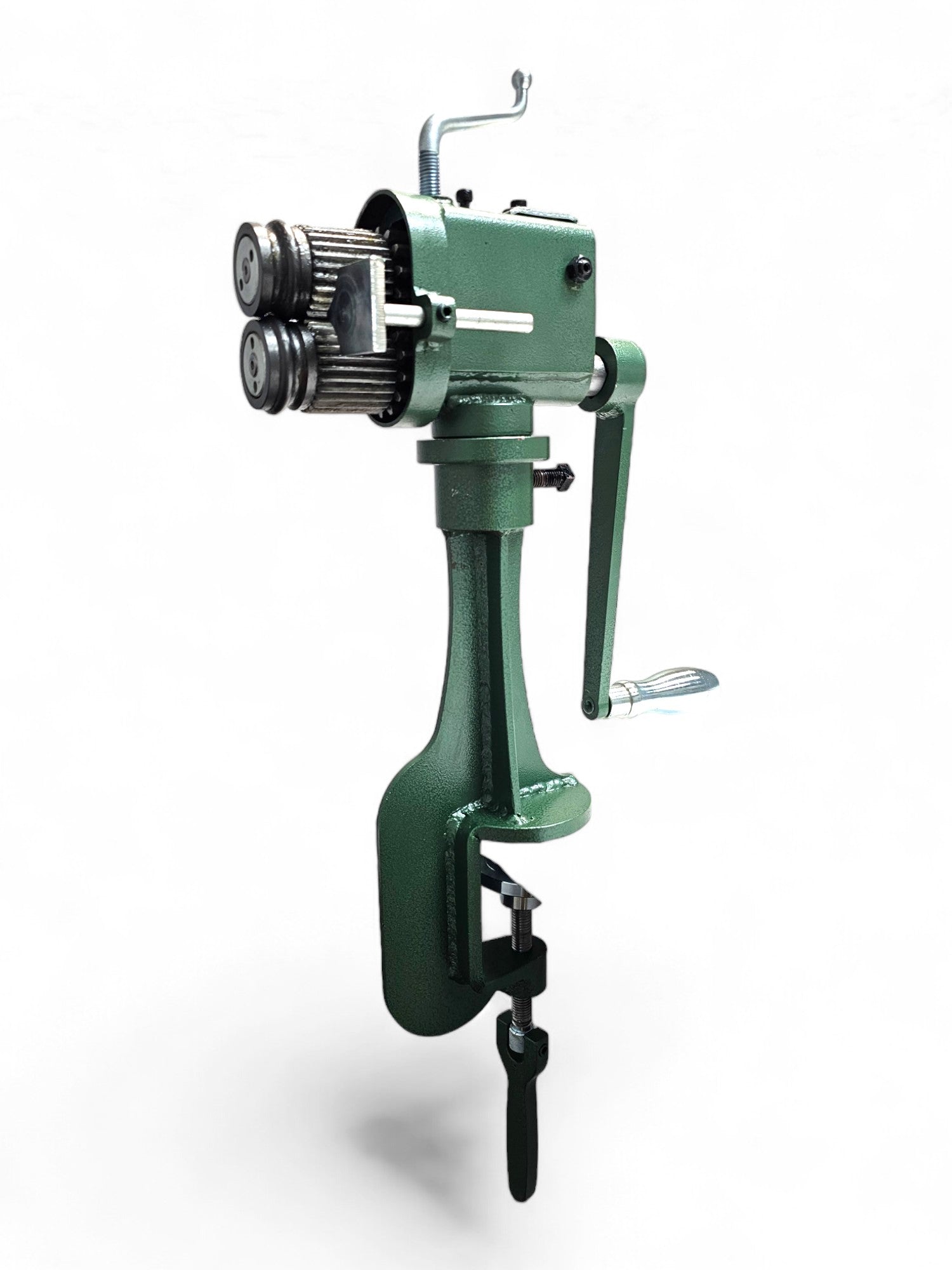

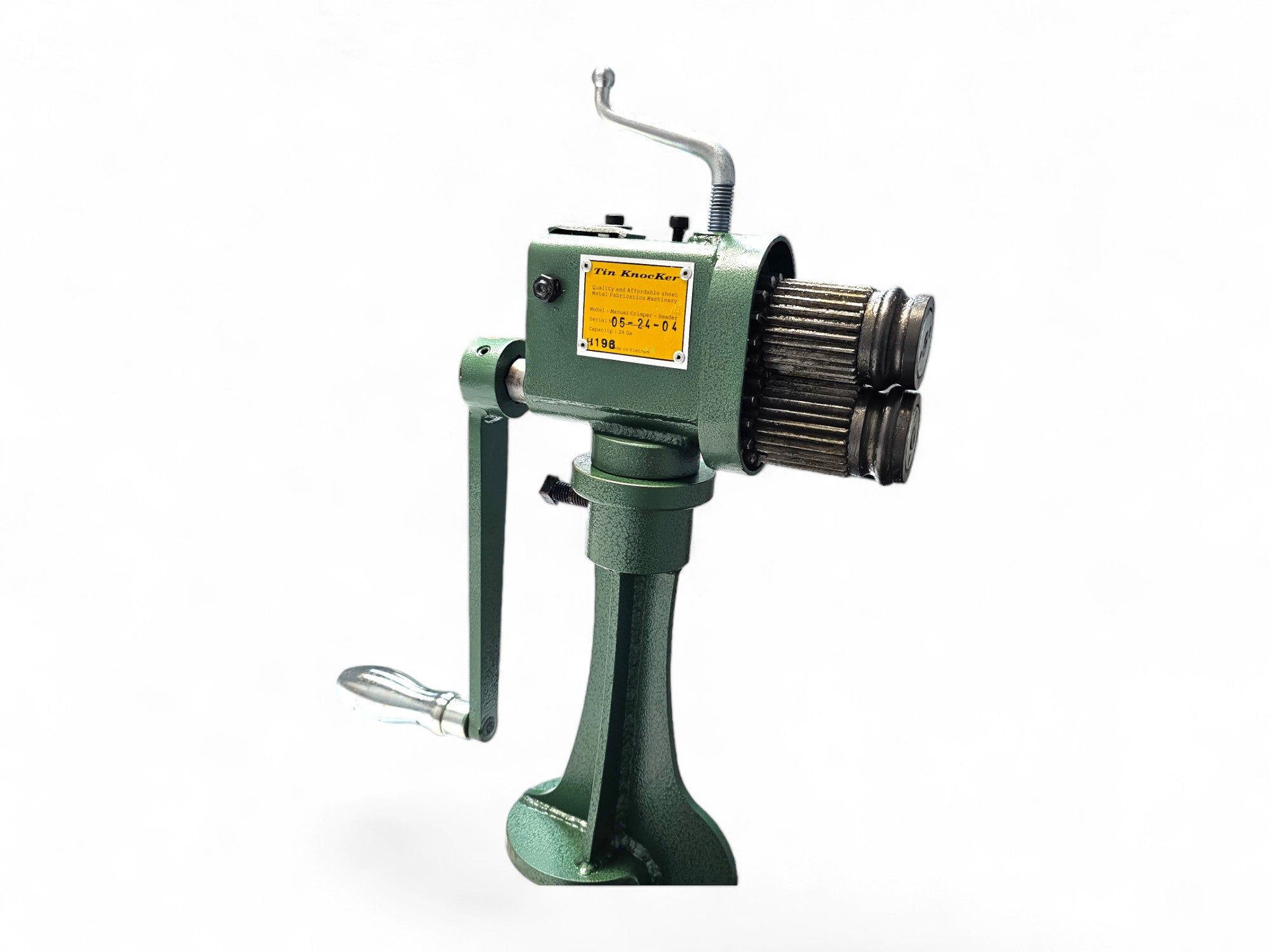

TK Manual Crimper Beader with Pedestal - 24 Ga Capacity

SKU: TKCRIMP

Product Overview

Introducing the TK Manual Crimper Beader with Pedestal, the ultimate tool for crimping and beading metal in one smooth pass. Engineered for efficiency and durability, this machine handles 24-gauge metal and lighter with ease. Available from a distributor near you and typically in stock at one of our warehouses, the TK Manual Crimper Beader is ready to meet your needs.

Key Features

Dual Functionality: Crimp and bead in a single pass.
Included Components: Ogee bead, crimping tool, depth gauge, and base.
Easy Operation: The speed of the hammer is regulated by the trigger pressure, with optimal performance at 90 psi air pressure.

Safety Instructions

Maintain a well-lit, clean, and orderly work area to prevent accidents.
Do not use compressed air to clean debris or grit from yourself or the machine. Use a rake or brush instead.
Only authorized and trained personnel should operate the machine. Ensure familiarity with the operator’s manual and any safety warnings.
Safety glasses are recommended during use.

Operating Instructions

Ensure the machine is securely bolted to the bench stand and the stand is firmly clamped to the workbench.
Mount the lower crimping roll onto the driving lugs of the lower gear, ensuring proper alignment with the key slots.
To mesh the upper crimping roll with the lower, rotate the upper gear until the lugs align correctly.
Adjust the machine as follows:
- Mount the crimping and ogee beading rolls securely with roll nuts.
- Use the adjusting screw handle to raise or lower the upper rolls.
- Set the movement limit of the upper rolls with the setscrew.
- Adjust the pivot screw for a fade-away or straight crimp.
For crimping only, remove the ogee bead rolls and crimping rolls, mount spacers on the arbors, and securely lock with roll nuts.
Lubricate machine arbors, screws, rocking box, journal bearings, and gears with medium motor oil regularly.

Specifications

General: Crimp and bead metal in one pass, suitable for 24 ga and lighter.
Capacity: 24 Ga mild steel
Weight: Approximately 32 lbs
Dimensions: 26 x 16 x 12 inches
